R2D2 F1 Car
This project presents the design and development process of a mechanically animated children’s toy, featuring R2D2 as the driver of a Formula 1 inspired vehicle.
The concept merges iconic elements from Star Wars, high speed motorsport aesthetics, and basic mechanical principles to create an engaging and educational toy.
Client
CSULB
Type
Product Design
Year
2023
Process
Crankshaft Driven Mechanism
At the core of the design is a central crankshaft that transforms rotational motion into reciprocating linear movement. This mechanism drives the animation and introduces a dynamic, hands on experience that demonstrates fundamental mechanical motion.
Dual Linkage System

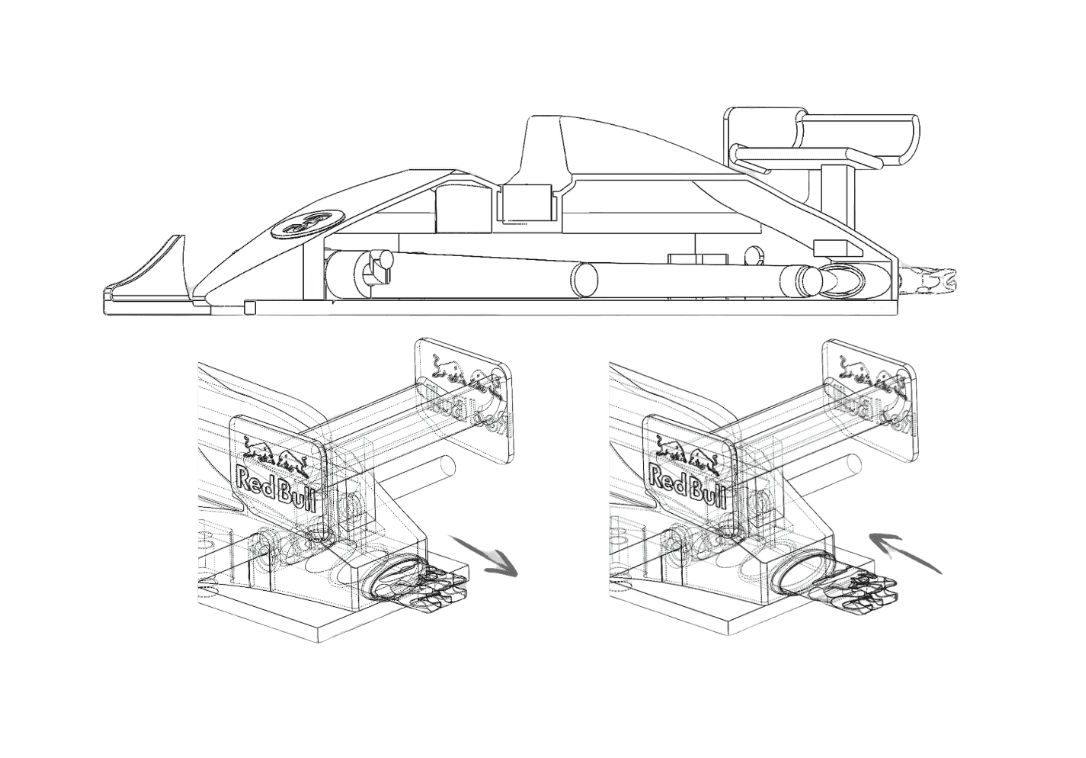

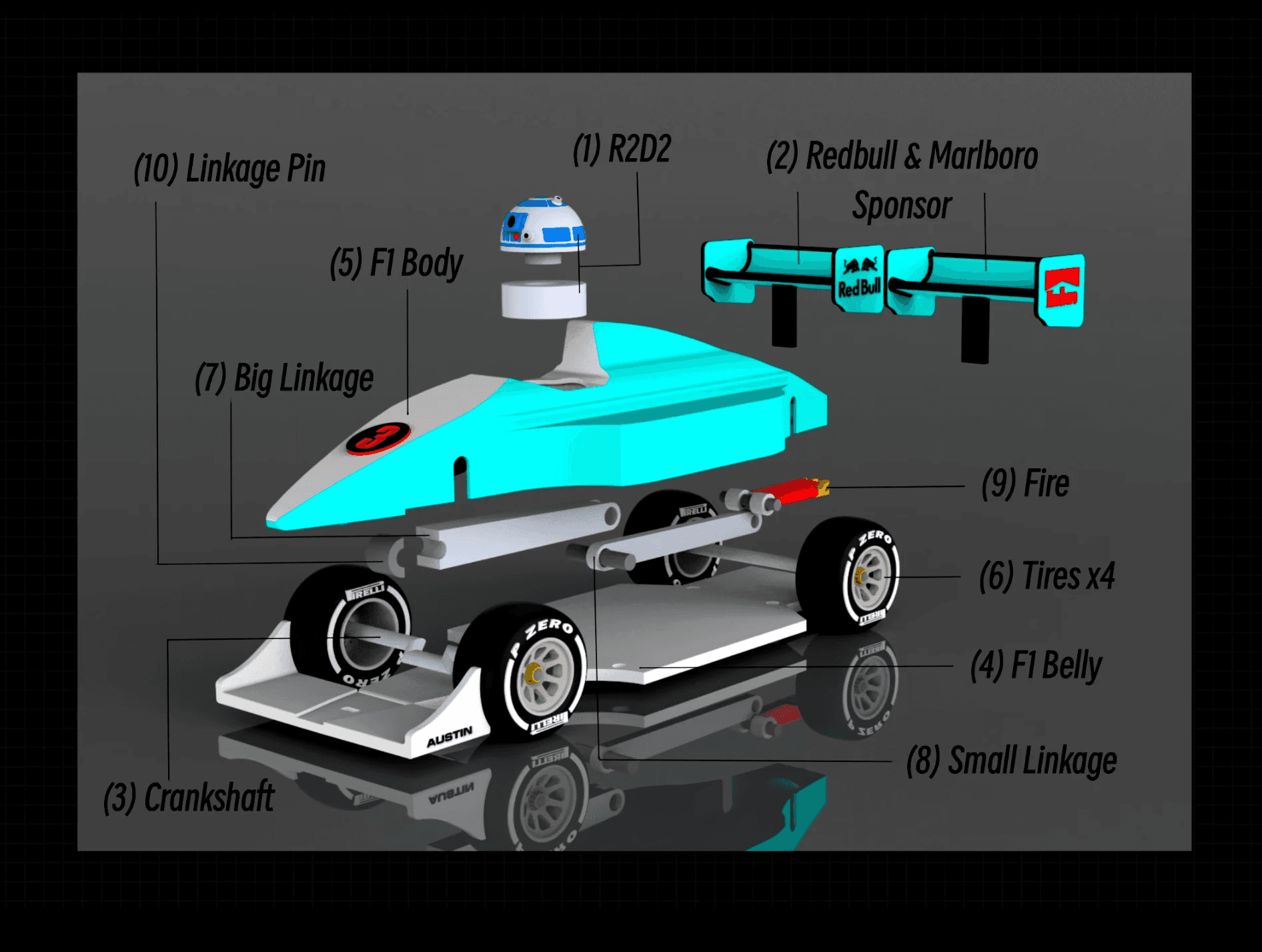

The toy incorporates two sets of linkages, both large and small, connected to the crankshaft. As the front wheels rotate, the crankshaft actuates the linkages, which in turn animate the rear exhaust. This motion simulates a “flame burst” effect, with a fire element that moves in and out as though the engine is firing.
CAD Visualization
The toy was fully designed and rendered using CAD software, with an emphasis on clean surfaces, exaggerated proportions, and vibrant color schemes. These visual choices enhance both the toy’s aesthetic appeal and its readability as a mechanical demonstration model.
Educational and Playful
This concept not only encourages imaginative play but also serves as a visual learning tool for understanding how crankshaft systems and linkages function in mechanical design.
Outcome
The final outcome is a visually engaging and mechanically animated toy that merges character, motion, and design. Featuring R2D2 as the pilot and a Formula 1 inspired body, the toy is powered by a crankshaft and dual linkage system that creates a realistic flame effect at the rear exhaust. Designed entirely in CAD, it showcases how basic mechanical principles can be brought to life through thoughtful, playful engineering. This project demonstrates the potential of combining storytelling with functional design to create an educational and entertaining experience.
